Beaut Bike Ultimate Nipple Tray - Digital Files!

DIGITAL FILES COMING SOON!

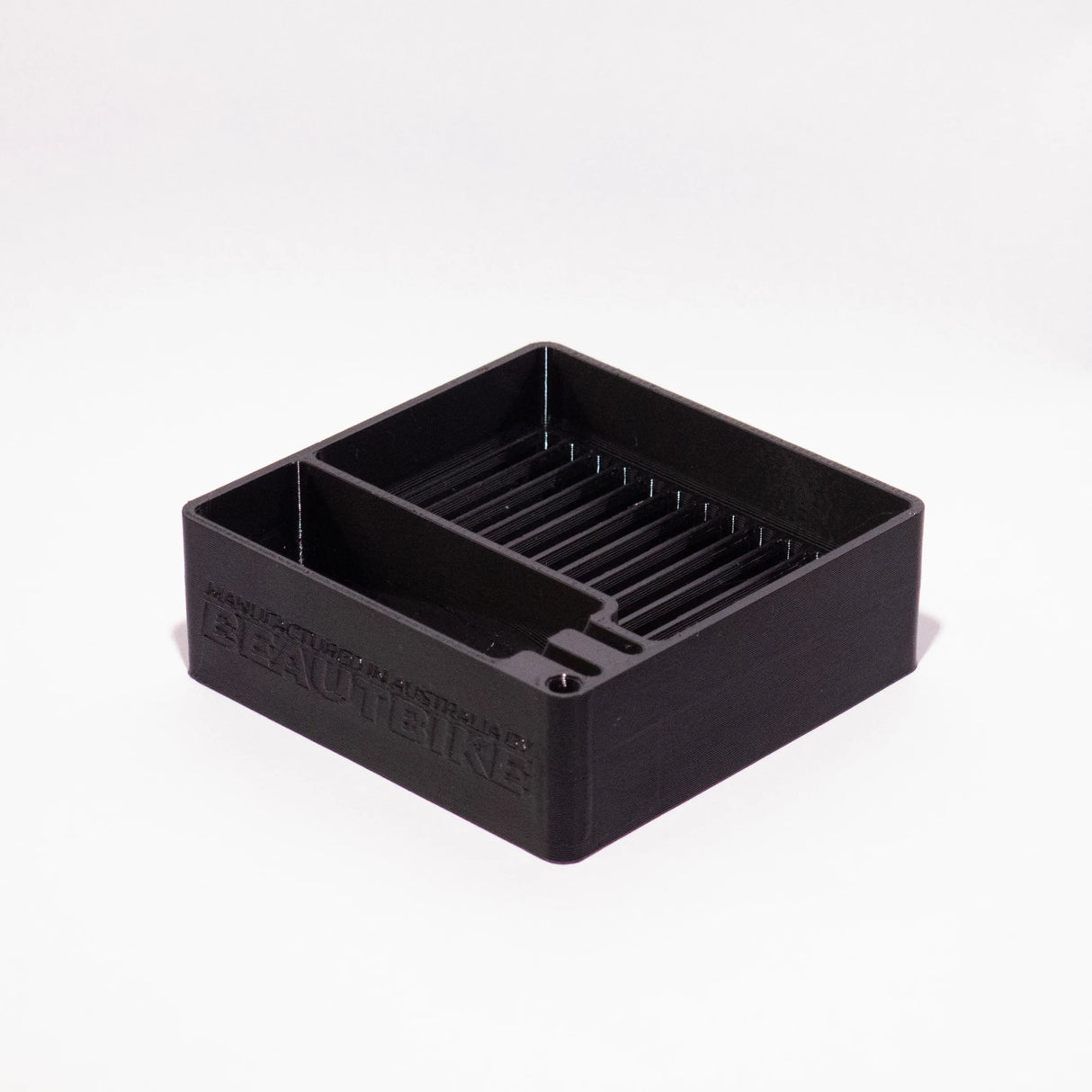

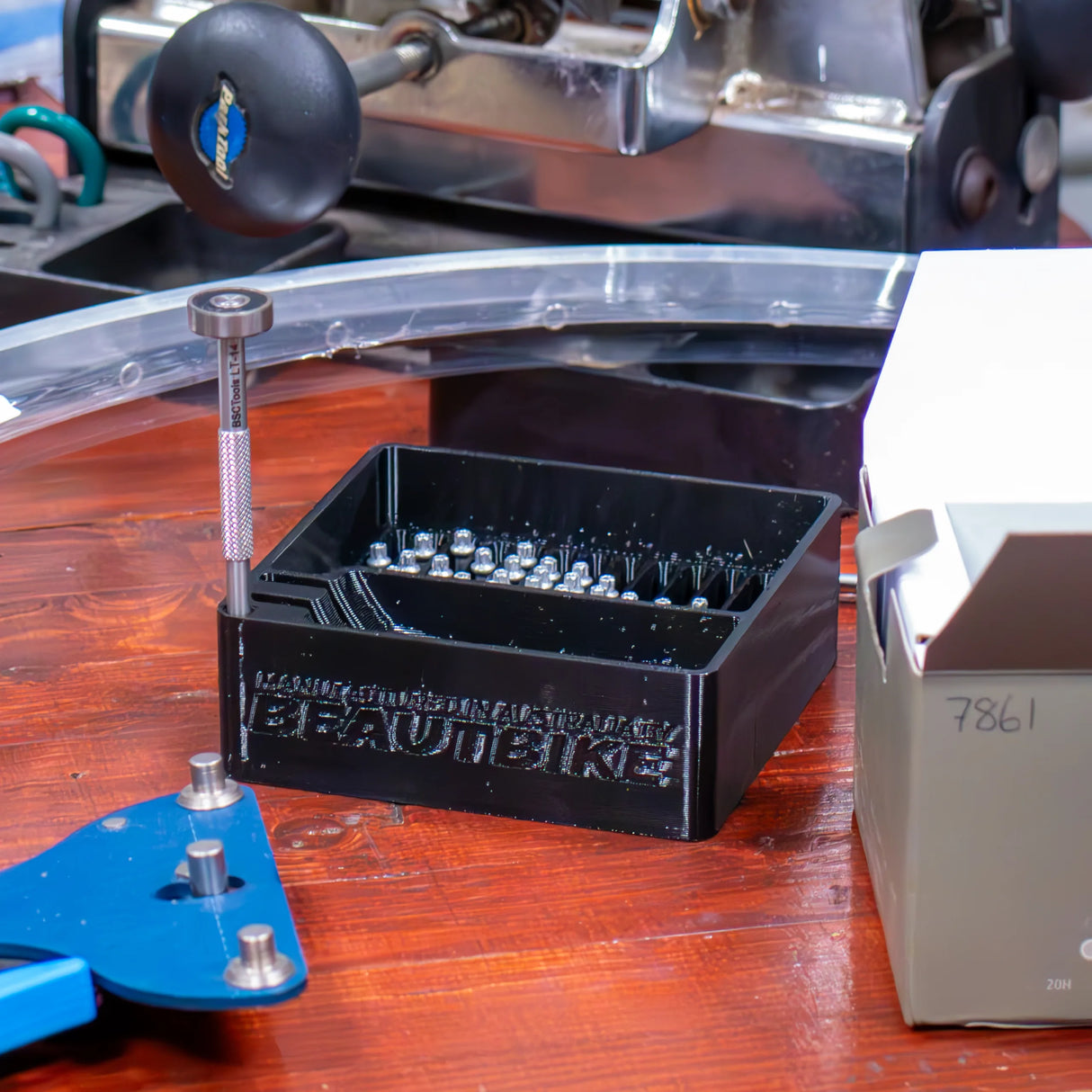

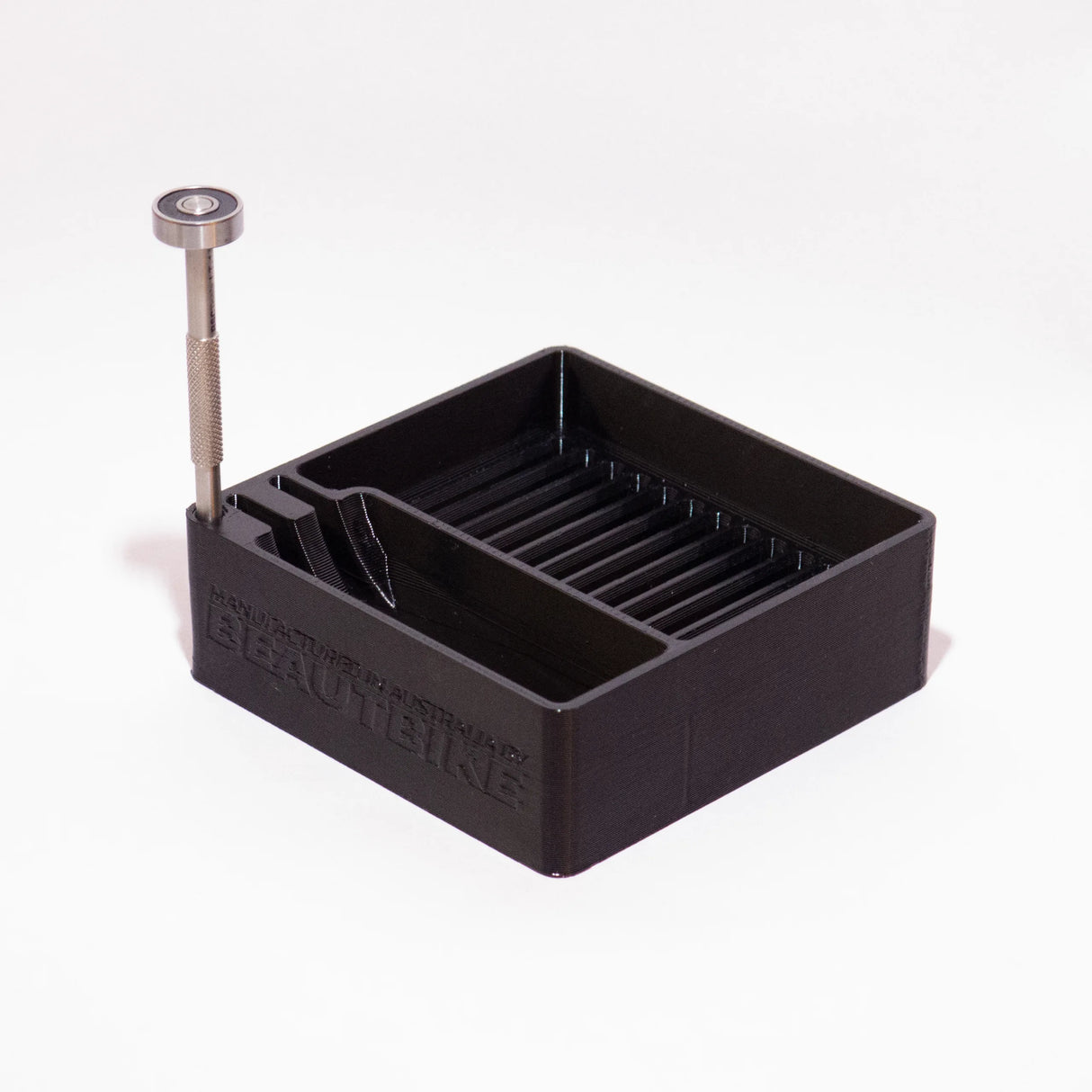

Over 18 months of R&D in local bike shops around the country have gone into developing this tray to increase your wheel building efficiency, here’s why it’s a game changer:

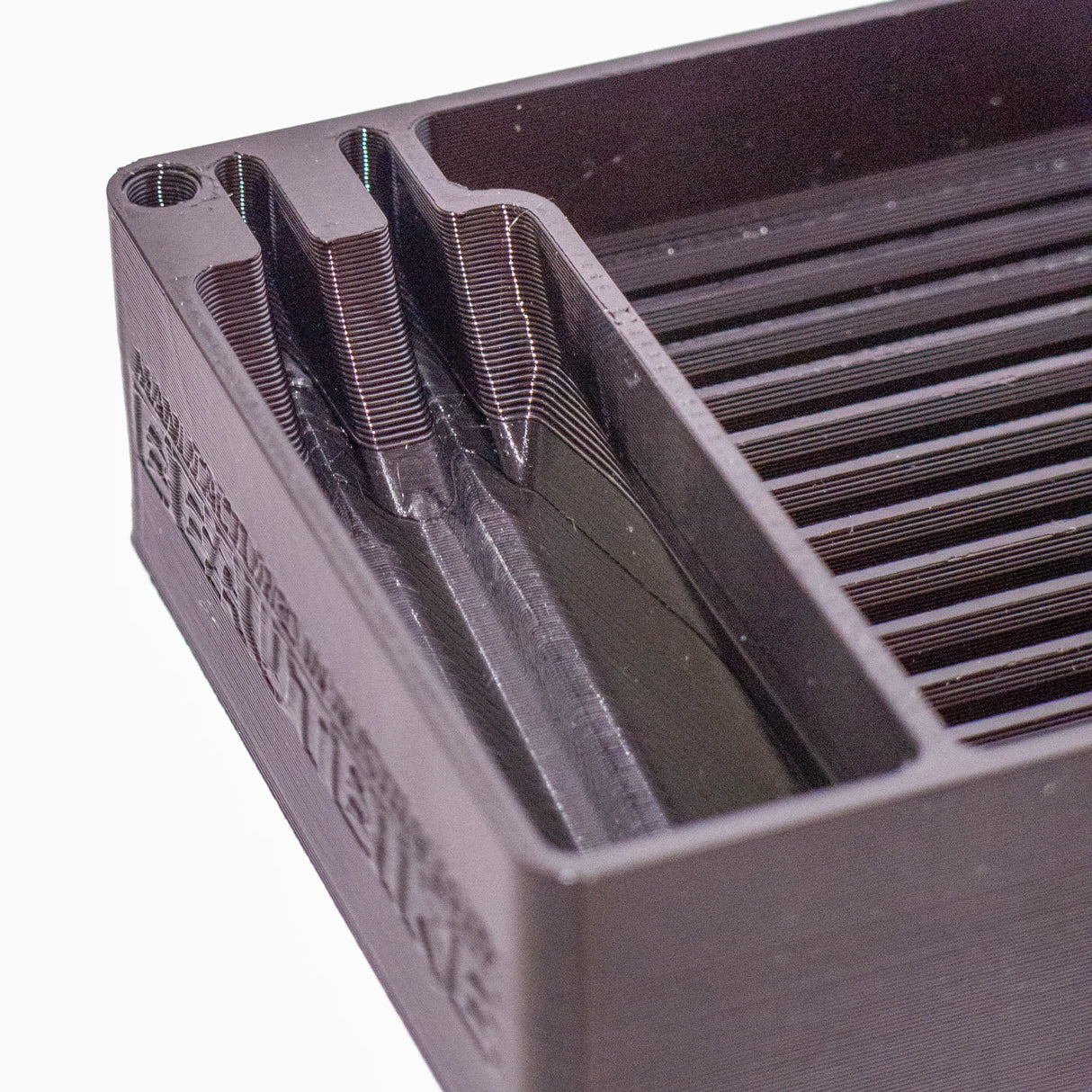

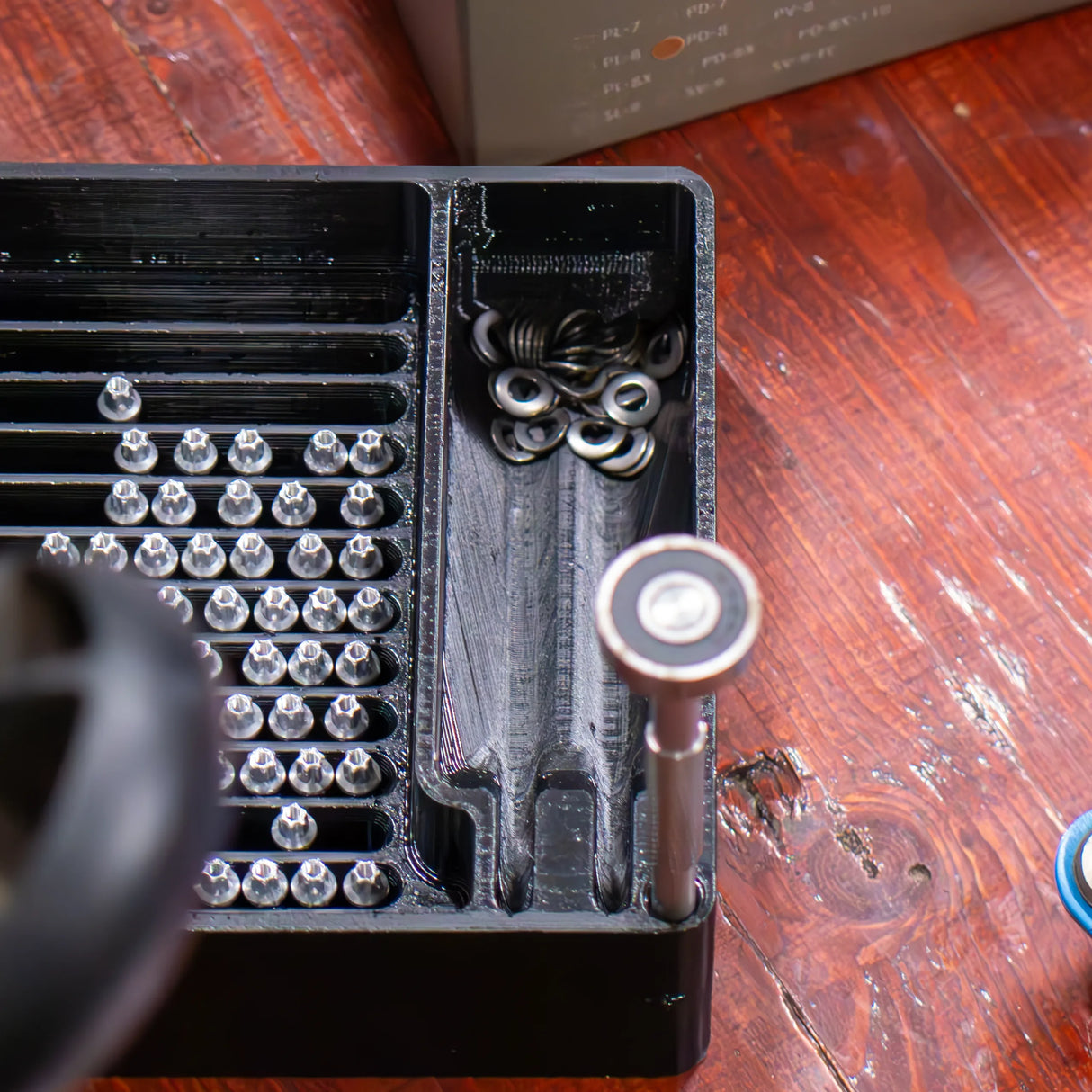

The Nipple Washer Ramps make this tray truly unique. They are sloped to self clear and keep your washers ready at the bottom corner of the tray, then all you need to do is push a nipple into a washer and drag it up a ramp. If you’re building wheels with nipple washers, this tray is guaranteed to save your workshop time. We offer two variations designed specifically for left and right handed people – if you’re left handed go for a left handed one, it’s pretty easy!

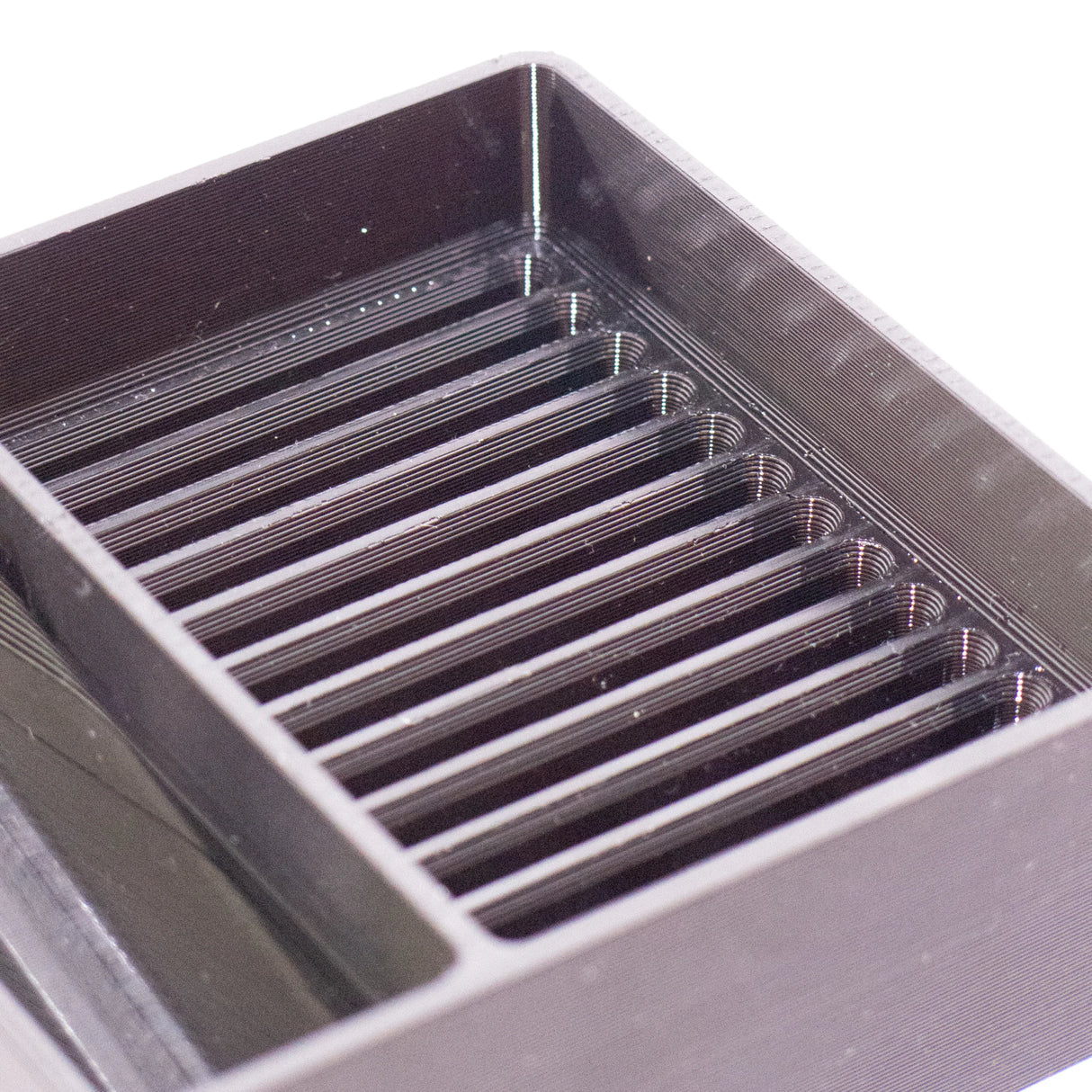

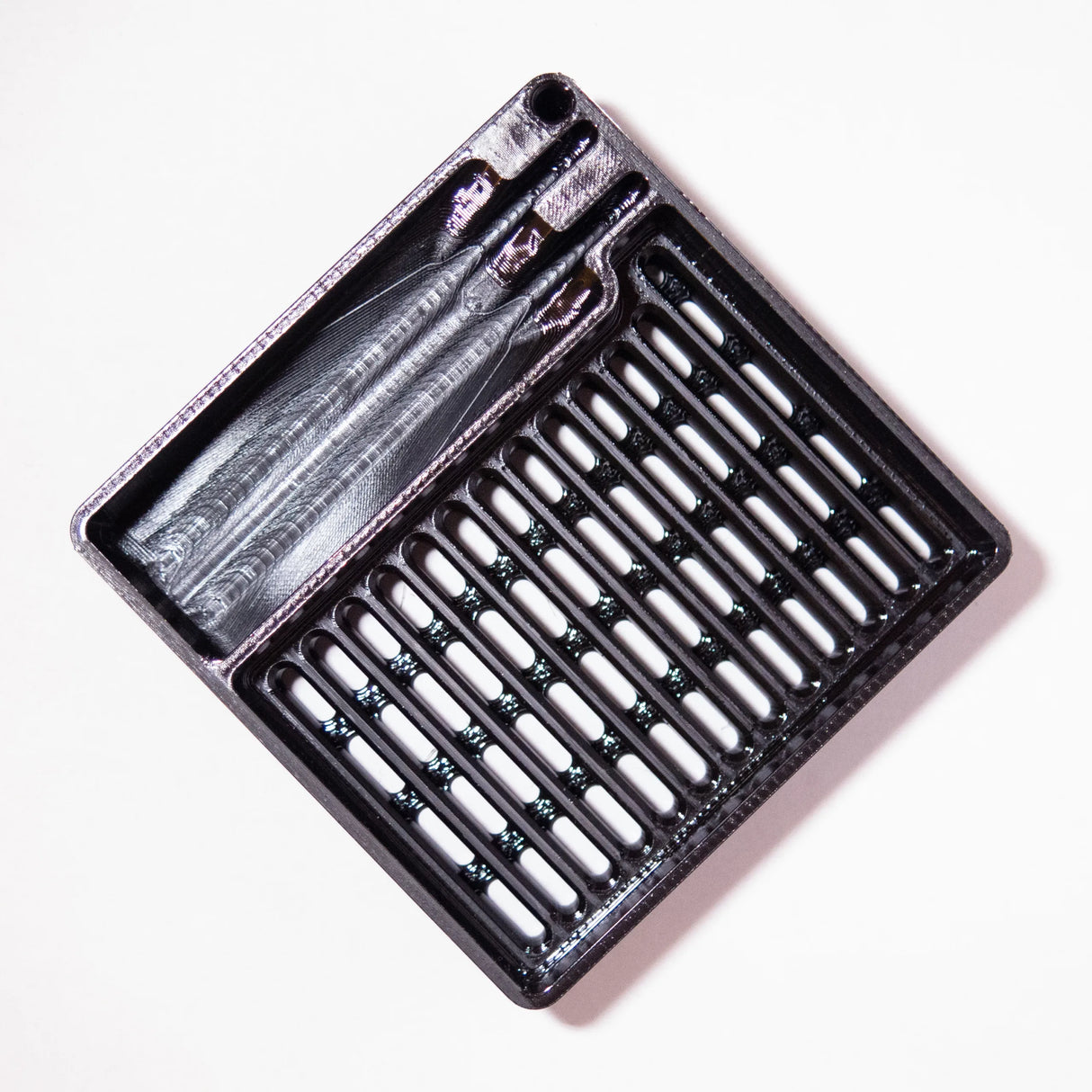

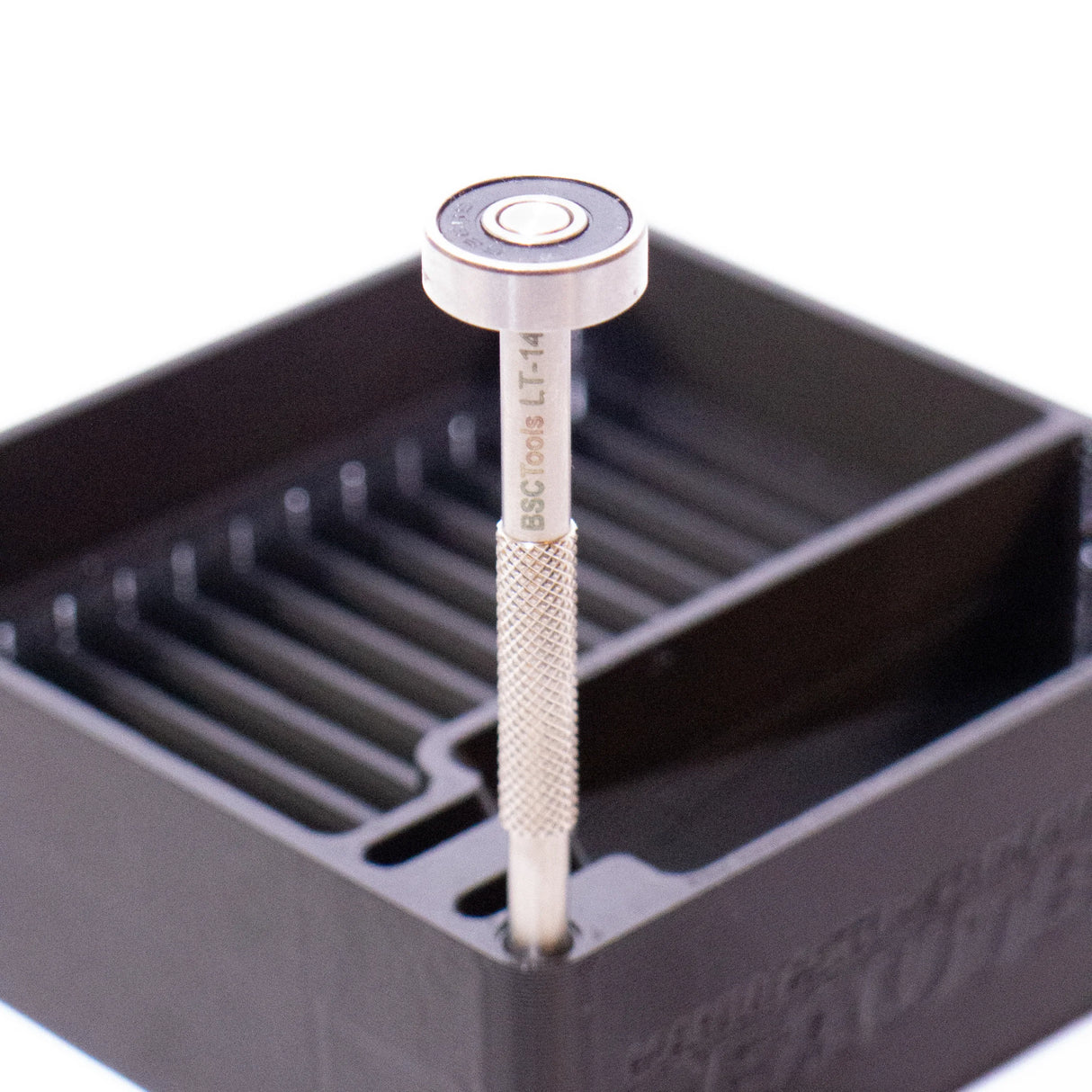

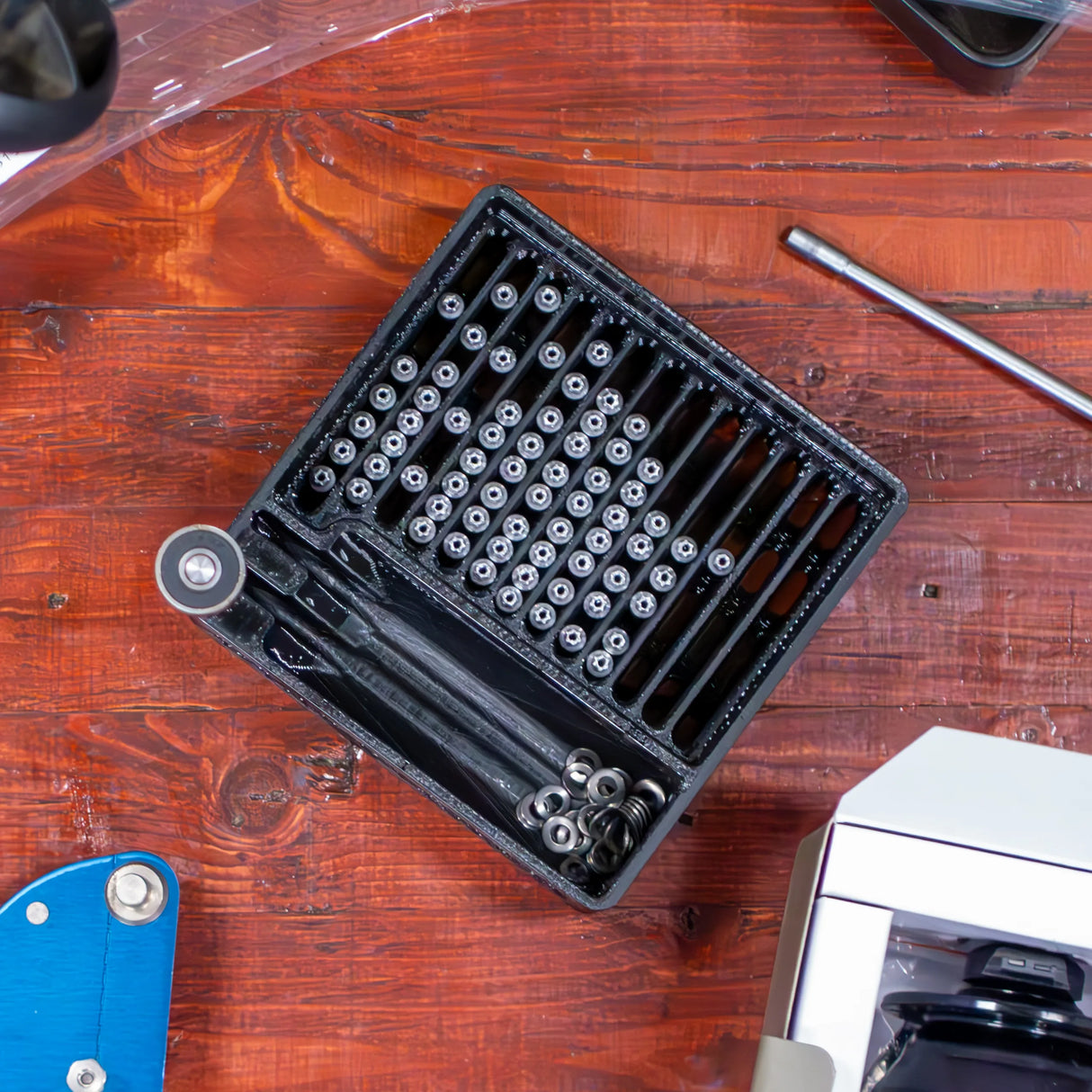

The Nipple Slots are worth a closer look too, they are capable of holding 145 nipples when fully loaded, enough to build 4 or 5 wheels! They are suitable for nipples ranging from 13G to 15G and will even fit some 12G, with lengths up to 18 mm (longer nipples will fine work too, just not perfectly). The slots pass all the way through the tray and are designed to be self clearing so any stray nipple washers or grit will pass straight through, however they are still very stiff to support the nipple when its being picked up by a loading tool. Lastly, there is a tall 20 mm wall to prevent nipples from flying all over your floor whilst shuffling. A Divider is also available which allows you to easily separate two different kinds of nipples in the slots.

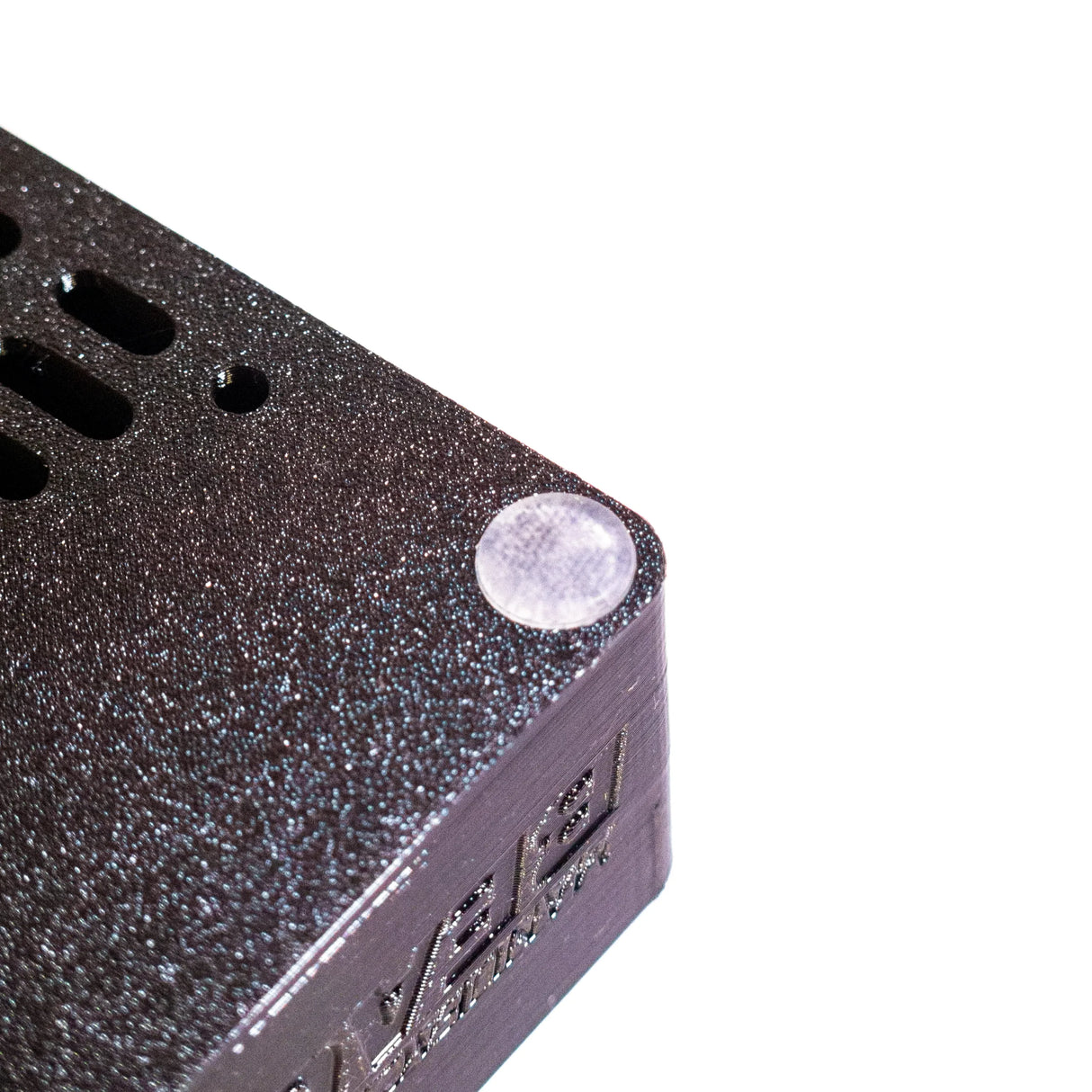

The Rubber Feet are the first of their kind on a Nipple Tray and prevent it from sliding all over your workbench – even if it’s a slippery stainless steel one. They’re recessed slightly into the body of the Tray for a clean look and Replacements are available.
